Design of Pin

Material selection

Malleable cast iron with the following material property can be selected as pin

ASTM A602
σ_TENSILE 621Mpa
Yield strength σ_y = 483Mpa
Let us take factor of safety n = 2

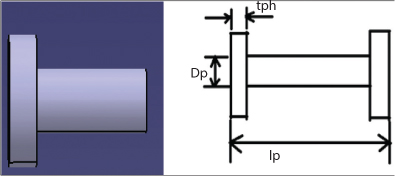

Figure shows a pin made of malleable cast iron with certain property. — Figure 4.21 Pin.

Figure shows analysis of force on a pin. — Figure 4.22 Force analysis on pin.

Design analysis

2 Pin in the plunger socket joint,

Since 130<150Mpa there for the design is safe.
